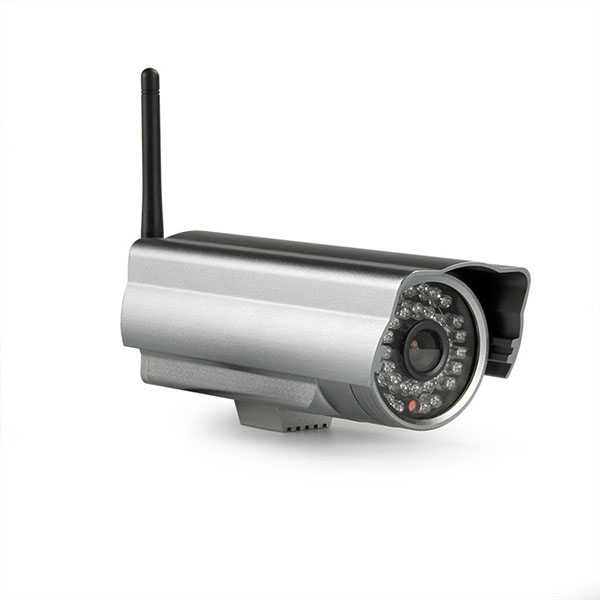

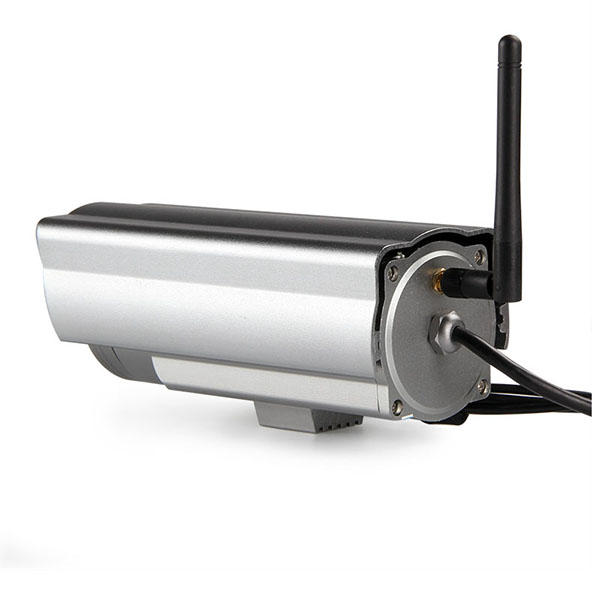

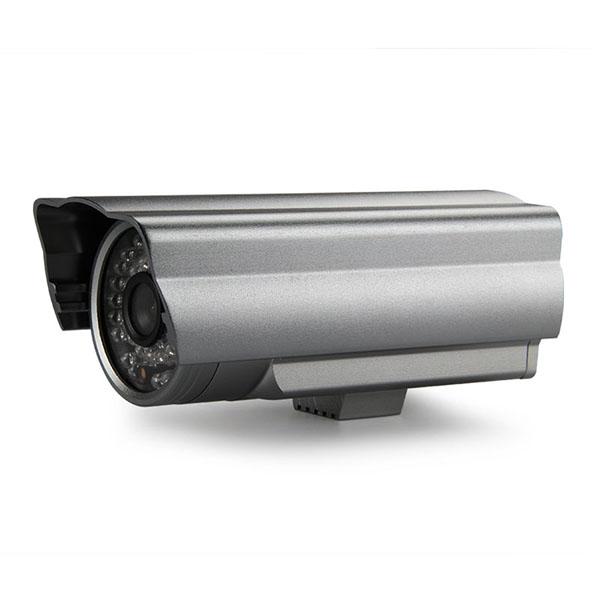

IP Camera ,out door Camera
Stock Code:DG034
Specifications:
| Model No#S5061FN-SWR | ||
| Image Sensor | Sensor | 1/4'' 300K pixel Color CMOS |
| CMOS | Support AWB,AGC,BLC | |
| SNR | ≥39dB | |
| Min.Illumination | 0.8Lux/F1.4(color mode),0.3Lux/F1.0(black/white mode) | |
| Lens | Lens Type | Glass Lens |
| Lens/Viewing Angle | 6.0mm F1.6 | |
| Angle of View | 45° | |
| Day/Night Vision | Dual IR-CUT Filter | |
| Infrared night vision | IR LEDs 36pcs φ850mm*5mm | |
| Night Vision Distance | 20m | |
| Network | Network Protocol | TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,PPPoE,P2P |
| Ethernet | 10Mbps/100Mbps RJ-45 port | |
| Wireless Standard | WiFi(IEEE 802.11b/g/n) | |
| P2P | Support | |
| Features | ONVIF | Nonsupport |
| Motion Detector | Support | |
| Email/FTP Alert | Snapshot upload via Emal/FTP | |
| Alarm Input/Output | Nonsupport | |
| Local Memory | Nonsupport | |
| 24 hours Surveilance | Day/Night surveilance | |
| System | Operation System | Embedded Linux OS |
| System Security | Multiple Levels user authority | |
| Online Visitors | 4 visitors viewing stimutaneously | |
| Dynamic DDNS | Embeded free DDNS | |
| Smartphone Surveilance | iOS and Android | |
| Pan/Tilt | Pan | Nonsupport |
| Tilt | Nonsupport | |
| Preset position | 16 preset position | |
| Video | Compression Format | MJPEG |
| Resolution | VGA(640×480),QVGA(320×240) | |
| Frame Rate | 1~30fps | |
| Stream | Single Stream | |
| Image adjustment | Brightness,contrast,saturation,sharpness are adjustable | |
| Audio | Two way audio | Support |
| Embeded microphone | Built-in -48dB microphone | |
| External Microphone | Nonsupport | |
| Embeded Speaker | Internal speaker(8Ω/1W) | |
| Audio Output | Nonsupport | |
| Andio Compression | ADPCM/32kbps | |
| Physical | Power supply | DC12V/2.0A |
| Power consumption | 7W(max) | |
| Work Environment | Tempertature:-10~50°C,Humidity<90% | |
| Weight | Gloss weight 900g(Only for reference) | |
| Dimension | 200×165×105mm(L×W×H) | |
| Certificates | CE,FCC,ROHS | |
| Warranty | 12 months | |
